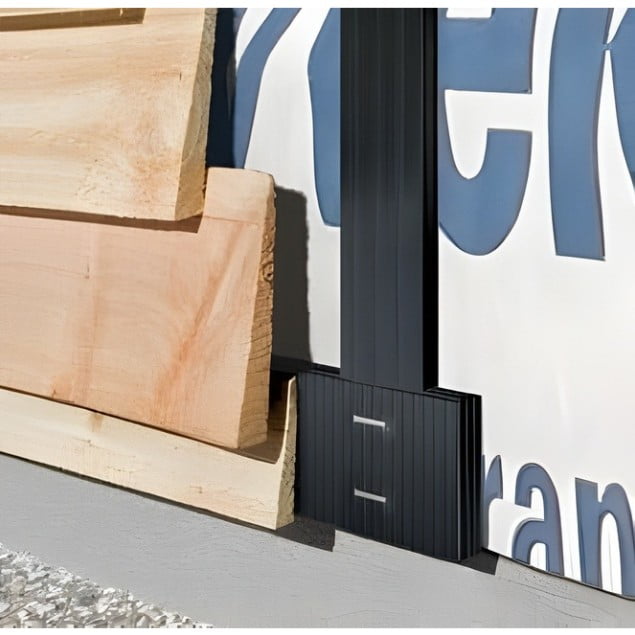

Cor-A-Vent SV-5 Rainscreen Siding Vent (4' Long Sections with 15 Pieces Per Box)

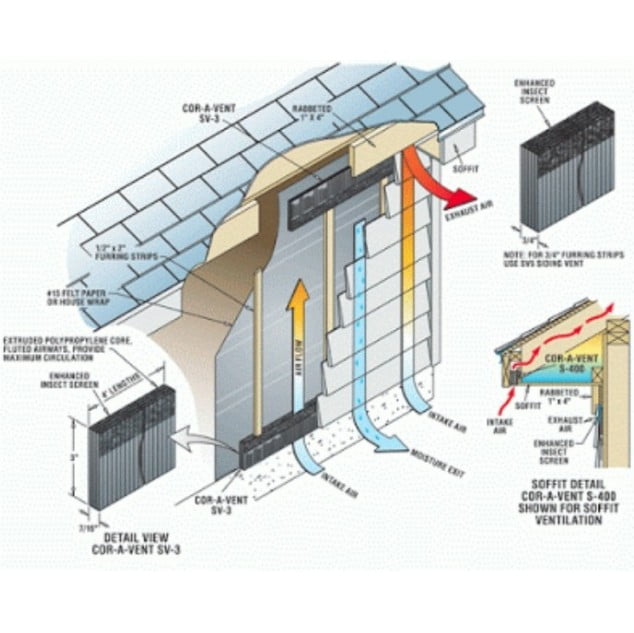

A simple, effective solution for rainscreen ventilation behind wood, hardboard & fiber cement siding. Venting behind your siding is just as necessary and valuable as venting your attic. Trapped moisture from driving rain or condensation can cause major problems. Paint peels off, exterior sheathing gets wet, siding can warp and your house wrap becomes saturated. Sold in 4-feet long sections with 15 pcs. per carton (60 lin. feet). The ¾” thick SV-5 Rainscreen Siding Vent keeps insects out while allowing moisture to drain away and drying airflow to pass behind the siding. SV-5 pairs with treated ¾” thick wood furring strips, or use a double layer of Cor-A-Vent Sturdi-Strips for a perfect match.** ** In situations where exterior rigid foam insulation is being installed, Cor-A-Vent recommends using ¾” thick treated wood furring strips installed over the foam, screwed into the wall studs, to provide a structural fastening point for the siding, and the SV-5 Siding Vent installed at the top and bottom to supply the rainscreen drainage, airflow, and insect screen.

• Cor-A-Vent SV-5: A simple, effective solution for rainscreen ventilation behind wood, hardboard, & fiber cement siding

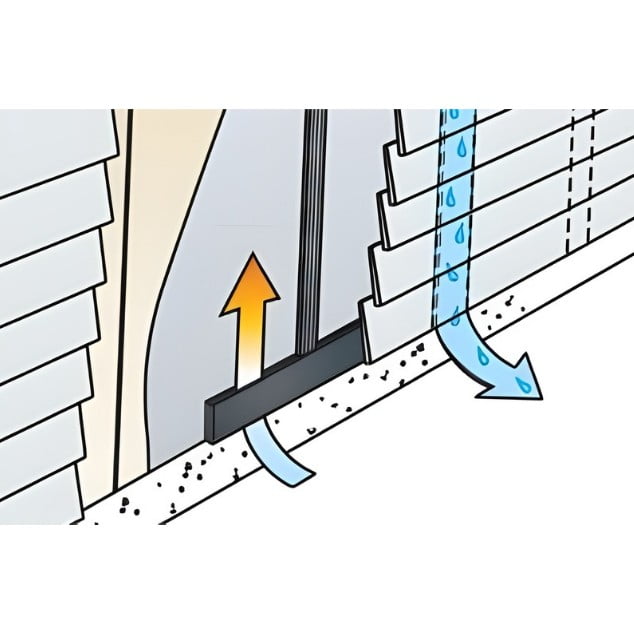

• DRAINAGE EFFICIENCY: Rated at 92% per ASTM E 2273, it keeps insects out while allowing moisture to drain away and airflow to pass behind the siding.
• SIZE: Each piece measures ¾” thick by 3” high and the box contains 15 - 4 foot pieces (total of 60 linear ft.)
• CRUSH RESISTANT: The SV-5 is heat, impact, and crush-resistant and made from sturdy polypropylene plastic
• USE: The SV-5 can be paired with treated ¾” thick wood furring strips, or a double layer of Sturdi-Strips for a secure finish
• Item Diameter - 0.75 Inches
